The Ultimate Guide to Lockpicking an Abus Iron Rock 83/45

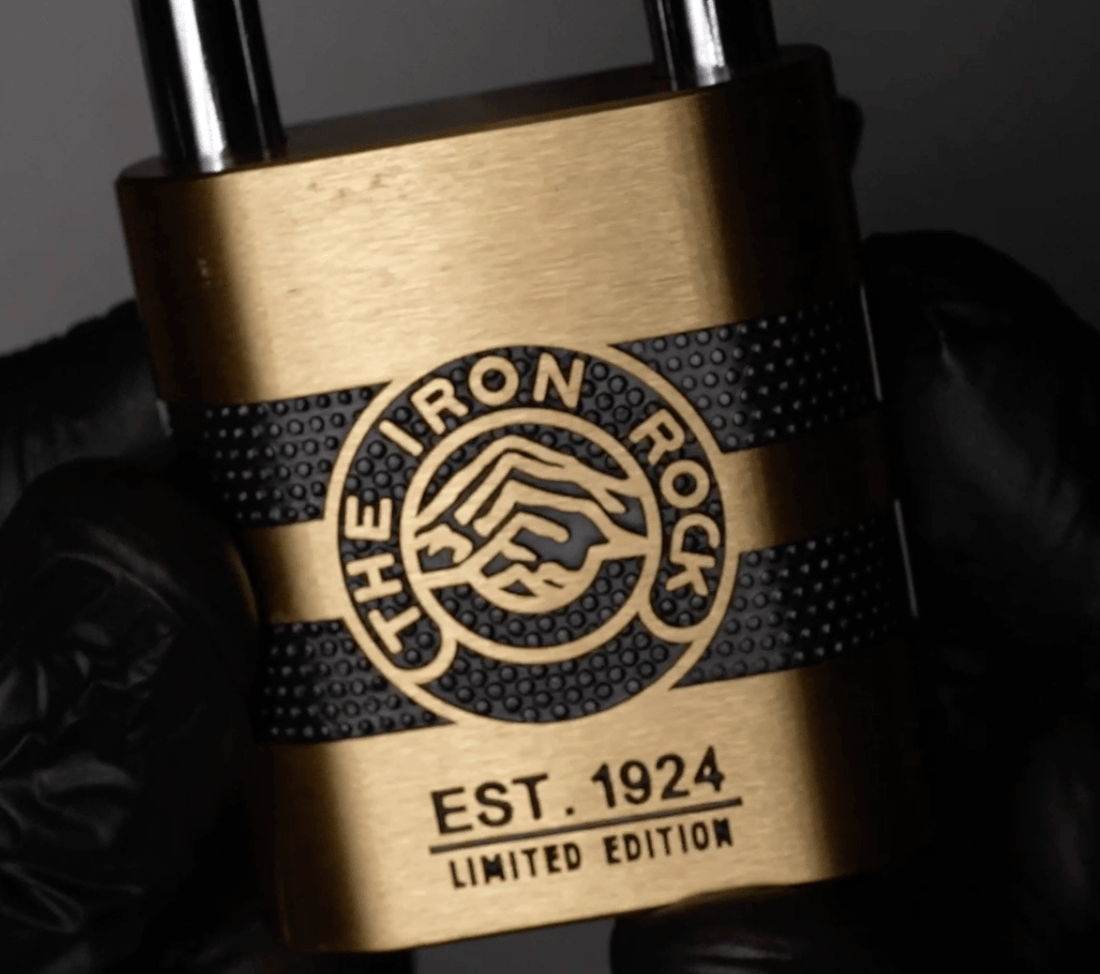

The ABUS Iron Rock 83/45, a limited-edition padlock released to commemorate ABUS’s 100th anniversary in 2024. This lock blends the design of the original 1924 "Iron Rock" with the modern 83/45 Eighty Three series, featuring a brass body, a hardened steel shackle with NANO PROTECT coating, and a high-precision pin tumbler cylinder. Since it’s based on the 83/45 platform, I’ll tailor the lockpicking approach to its known features, drawing from lockpicking community insights on similar ABUS designs. Note that specific details about the Iron Rock edition’s cylinder (e.g., exact pin types) can vary, but it’s typically a 5- or 6-pin system with potential security features like serrated pins.

You’ll need a tension wrench and a pick—preferably a short hook or half-diamond for the paracentric keyway common in ABUS locks. A thinner pick (0.020–0.025-inch) is ideal due to the tight tolerances. Both of these can be found in our Carbon Fiber Special or our Trainee 2.0 Lockpicking Set.

Steps to Pick the ABUS Iron Rock 83/45

1. Tension Setup: Insert the tension wrench at the top of the keyway (TOK tensioning) to avoid crowding the picking space. Apply light, steady pressure clockwise—most ABUS 83-series locks turn this way, though test counterclockwise if it resists. The brass body and double-ball locking mechanism require finesse; too much tension binds the pins excessively.
2. Pin Assessment: Start at the back pin and probe each position with your pick. The Iron Rock likely has 5 or 6 pins—standard key pins with a chance of 1–2 serrated or spool pins, given its commemorative yet practical design. Feel for binding pins; standard pins give a clean click, while serrated pins may grind or click multiple times (false sets), and spools feel mushy or cause slight counter-rotation.
3. Picking Process: Lift binding pins one by one. For standard pins, push gently until they set at the shear line. For serrated pins, work past false sets by easing tension slightly and nudging them to the true set point—listen for a subtle drop. If spools are present, lift slowly while pulsing tension to catch the shear line drop. Work in binding order, resetting if a pin oversets (common with tight ABUS tolerances).
4. Feedback and Adjustment: The NANO PROTECT shackle and robust spring can mask the core turning, so pulse tension after each pin sets to test progress. If it feels stuck, reduce tension—over-torquing is a frequent rookie mistake with this series. The double-ball locking adds resistance, so expect a firm turn once all pins are set.
5. Opening: When all pins align, the core should rotate, releasing the shackle. Apply steady torque to overcome the spring tension. If it doesn’t pop, recheck for missed false sets on serrated pins or adjust tension downward.

Tips and Challenges

• Keyway: The paracentric design restricts movement, so use a thin pick and angle it carefully. TOK tensioning helps here.
• Security Pins: If it’s a higher-end variant, expect serrated pins (common in 83-series locks) or a spool, making it trickier than a basic lock. False sets require patience—don’t rush past them.
• Time: For a novice, 15–60 minutes is typical, depending on pin complexity. Experienced pickers might crack it in 5–10 minutes. The 83/45 base is orange-belt difficulty (per lockpicking belt rankings) with 4–5 pins and light security features.
• Practice: Try with the shackle open first to reduce spring tension and learn the pin feel. The brass body transmits feedback well, but aluminum pins (if used) feel less springy than steel.

Unique Iron Rock Notes

The Iron Rock 83/45 is rekeyable via a screw under the shackle, but this doesn’t affect picking unless it’s been customized with a trickier cylinder (e.g., aftermarket high-security pins). Community reports suggest it’s a fun pick—solid but not overly complex, balancing its commemorative flair with practical security. If it’s got a Schlage or Yale keyway (some editions vary), the pin layout might shift slightly, but the technique holds.
